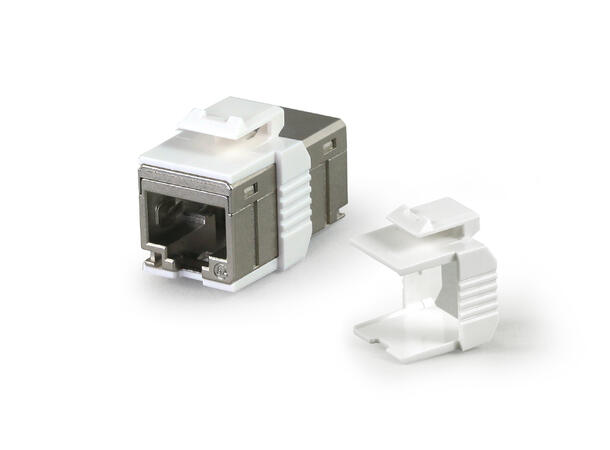

Cat.6a STP Coupler RJ45 F/F for Patchcords

This Cat.6a STP coupler is compatible with PoE++ (Type 4) and features a practical design with a removable bezel for easy installation in keystone slots. It meets stringent performance standards, ensuring reliable data communication and power transmission.

Specifications

Standards Compliance:

• IEC 60603-7-51
• ISO/IEC 11801, 2nd Edition
• CENELEC EN 50173-1
• IEEE 802.3bt
• IEC 60512-99-002:2019

Performance Specifications:

• Insulation Resistance: Minimum 500 MO
• Contact Resistance: Maximum 20 mO
• Plug Insertion Life: Minimum 750 cycles
• Plug Retention Force: Minimum 20 lbs
• Operating Temperature Range: -40ºC to 68ºC

Material:

• Contact Wires: Phosphor Bronze with gold over nickel plating
