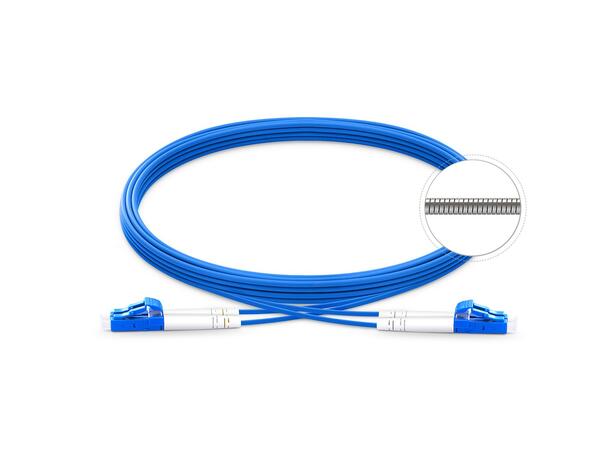

LinkIT Fiberpatch Armored OS2 LC/LC m
Braided steel jacket | Duplex | LSZH | Blue
Braided, flexible steel sheath and steel foil for best protection
- 2 x 3 mm outer diameter
- Bending radius 10D mm static
- Tensile short 400N, Long 200N
- OS2 9/125 for 10Gb
- Operative temp: -40°C to +90°C
Main Specifications
| Brand | LinkIT |
|---|
| Color | Blue |
|---|
| Length (m) | |
|---|
| Connector type 1 | LC |
|---|
| Connector type 2 | LC |
|---|
| Category | OS2 |
|---|
| Polishing contact 1 | UPC |
|---|
| Polishing contact 2 | UPC |
|---|
| Cable type | Duplex |
|---|
| Number of fibers | 2 |
|---|
| Core Diameter (um) | 9/125 |
|---|
Extended Specifications
| EAN | 7072662014643 |
|---|
| Maximum bend (mm) | 10 |
|---|
| Transmission speed | 10Gbps |
|---|
| Jacket material | LSZH |
|---|
| Anti-kink sleeve | Moulded |
|---|
| Operating Temperature | -40°C to +90°C |
|---|
| Halogenfree | Yes |
|---|
| Cable Diameter (mm) | 3 |
|---|
| Certifications | CE, RoHS |
|---|
