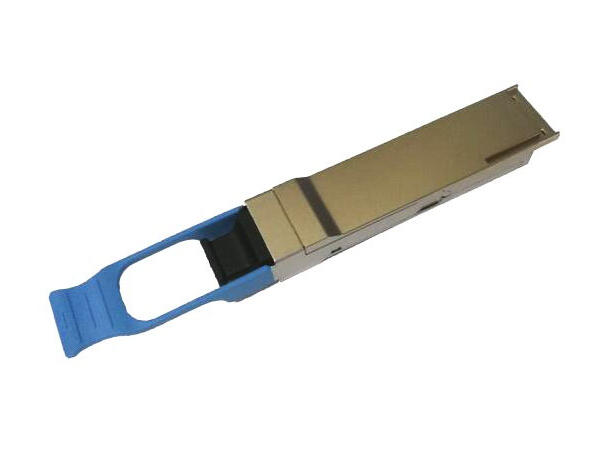

LinkIT QSFP+ 40Gbps PSM4 10km Cisco
4x10Gbps | 1310nm | DDM | MPO/MPT-12
PRODUCT FEATURES
- MPO-12 optical interface
- Maximum link length up to 10km
- Up to 10.3125Gb/s data links per lane
- +3.3 V power supply
- QSFP MSA compliant package
- Hot Pluggable
- High performance singal mode DML transmitter
- High sensitivity PIN/TIA optical receiver
- Single Mode operation
- BER < 1E-12@-13.6dBm(OMA)
- Case Operating temperature : 0 to 70ºC
- Data and Control Interfaces
- Tx Data CML/AC Coupled
- Rx Data CML/AC Coupled
- ModSelL LVTTL
- ResetL LVTTL
- ModPrsL LVTTL
- LPMode LVTTL
- 2-wire I2C communication bus
- RoHS 6 compliance
APPLICATIONS
- 40G BASE Ethernet
- Infiniband EDR interconnects
- Enterprise networking
- Similar to Cisco QSFO-4X10G-LR-S
