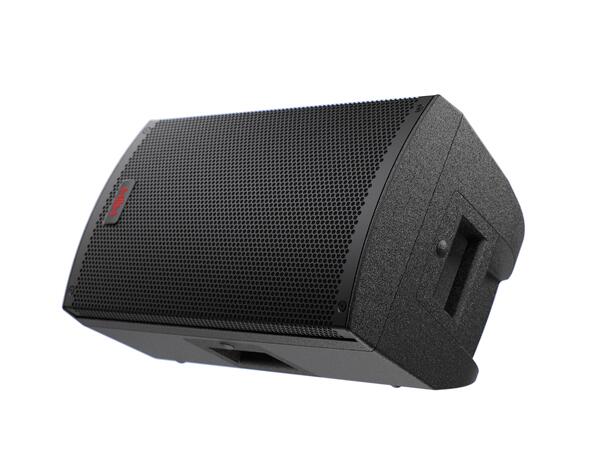

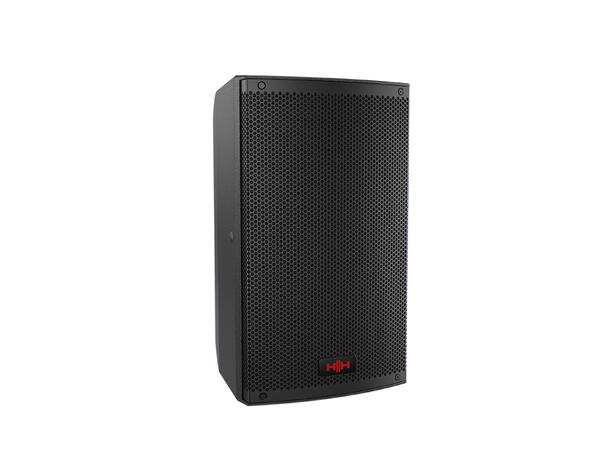

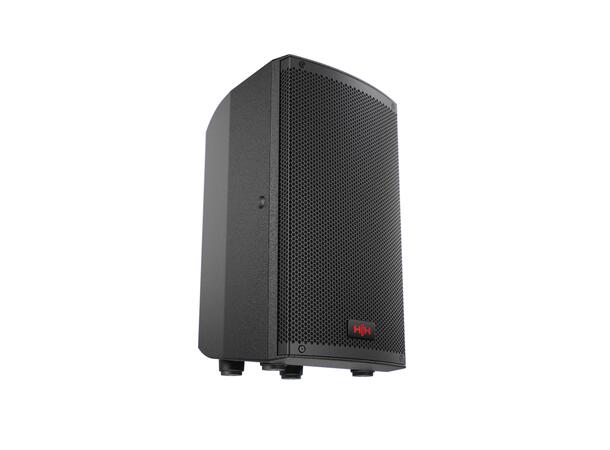

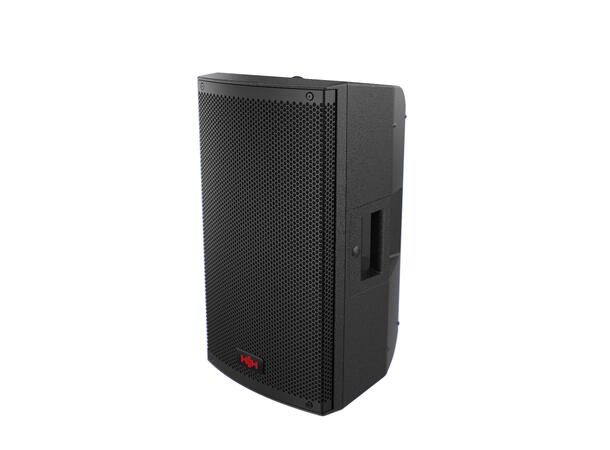

HH Speaker TENSOR TRE-1001 Active
10"+1" 1400W 48Hz-20KHz 129dB DSP EQ
The Tensor TRE-1001’s design has been tailored to deliver unparalleled performance within a compact enclosure. The high-grade Class D bi-amplifier provides impressive output performance, while the intelligent on-board DSP optimises and protects your system from failure. With 4 pre-set audio modes, the TRE-1001 is instantly customisable. Perfect for DJ, live band, monitoring or announcements. The integrated 2 channel mixer allows instant connection from a wide-array of devices. All this contained in an ultra lightweight, multi-angle enclosure with 2 molded carry handles and 4 M8 suspension points.
| Frequency Response | 48Hz - 20KHz |
| Max SPL (1M) (Peak) | 129 dB |
| LF Driver | 10-inch HH
designed professional low mid driver featuring imported glass reinforced cone |
| HF Driver | 1-inch
Compression Driver |
| Coverage | 90°H X 60°V |
| Crossover Frequency | 2.5KHz |
| Inputs | 2 x
Balanced Female XLR/6.3mm Jack Combi Socket |
| Outputs | 1 x
Balanced Male XLR with ground lift switch |
| Controls | 2x channel
gain, Master Volume, logo on/off, Ground Lift, EQ Mode |
| Indicators | Power, Clip
Indicator, EQ Mode, Front illuminated logo |
| EQ | User
selectable performance presets for Music, Live, Monitor, Vocal |
| DSP | Crossover,
EQ, Dual Band Limiters, Phase and Time Optimisation |
| Protection | Comprehensive
protection and clip free limiting + clip indicator |
| Cabinet | Robust
polypropylene cabinet with three handles and monitor angle |
| Pole Mount | 35mm
Distance Pole Socket |
| Grille | Heavy Gauge
powder-coated steel, Black with acoustic foam backing |
| Flying Points | 4 x M8
Mounting Points |
| Finish | Black |
| Unit Dimensions (Hwd) | 530 x 300 x
310 mm 20.9" x 11.8" x 12.2" |
| Unit Weight | 11.6Kg,
25.6 lbs |
| Carton Dimensions (Hwd) | 575 x 370 x
360 mm 22.6" x 14.6" x 14.2" (Shipping Volume 0.077 M3) |
| Packed Weight | 13.6Kg, 30
lbs |
