HH Speaker Tessen TNi-W8PRO-BK Black
8" + 1" 200W AES Continuous 400W 8Ohm

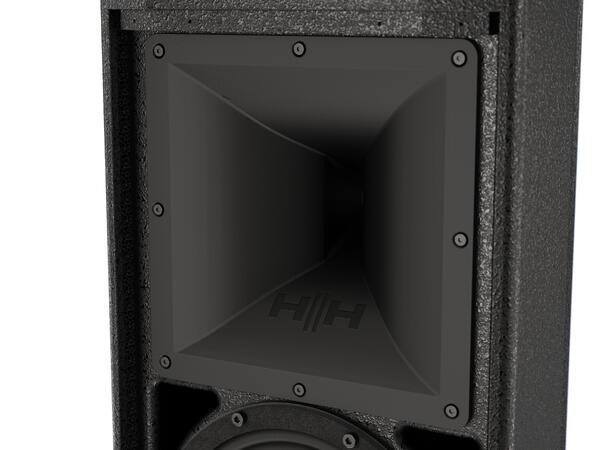

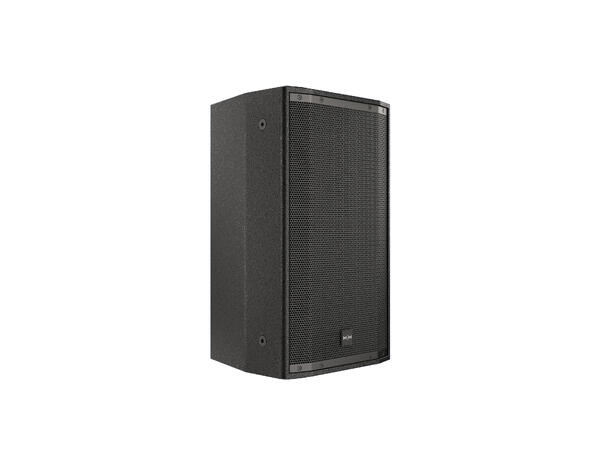

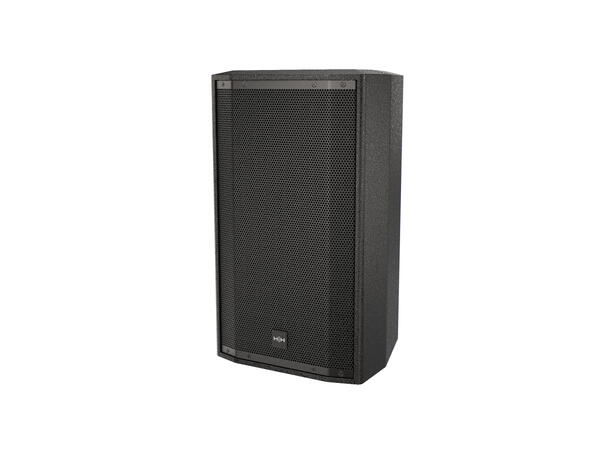

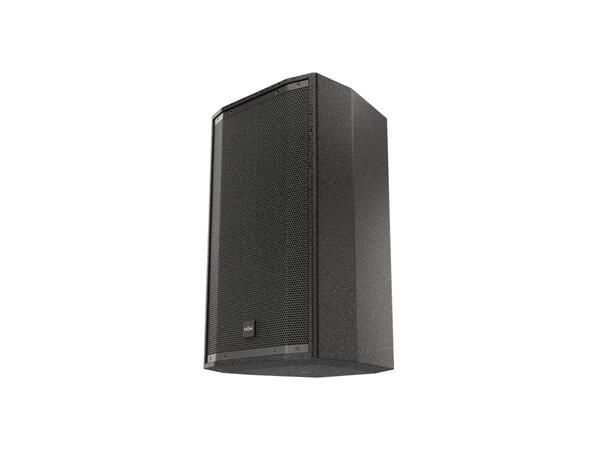

The HH TNi-W8PRO is a high power, compact, 2-way, full-range loudspeaker system comprised of the HH 8-inch (2-inch voice coil) high power HH low frequency driver and 1-inch Celestion CDX1-1070 high-frequency compression driver. The HH/Celestion designed waveguide is rotatable so the loudspeaker can be used in either vertical or horizontal orientation. Flexible input connections via either M4 barrier strip or Euroblock provide versatile connecting options. Mounting options include: 7 x M10 Penn-Elcom fly points, 4 x M8 mounting points for optional TNi-BRK30 mounting bracket. All enclosed in a robust wooden enclosure, powdercoated steel grille with acoustic foam backing in black or white finish.
| System
Type |
8-inch
2 way Passive Speaker, Bass Reflex |
| LF Driver |
8-inch HH Designed High Performance
Driver, 2-inch Voice Coil |
| HF Driver |
1-inch Celestion CDX1-1070 |
| Nominal System Impedance |
8 ohm |
| Power |
200W AES, 400W Continuous, 800W Peak |
| Recommended Amplifer |
400-800W @ 8 Ohms |
| Sensitivity (1W/1M) |
96 dB |
| Max SPL |
119 dB SPL, 125 dB SPL (Peak) |
| Frequency Response (-10) |
52 - 20kHz |
| Frequency Response (-3) |
63 - 18kHz |

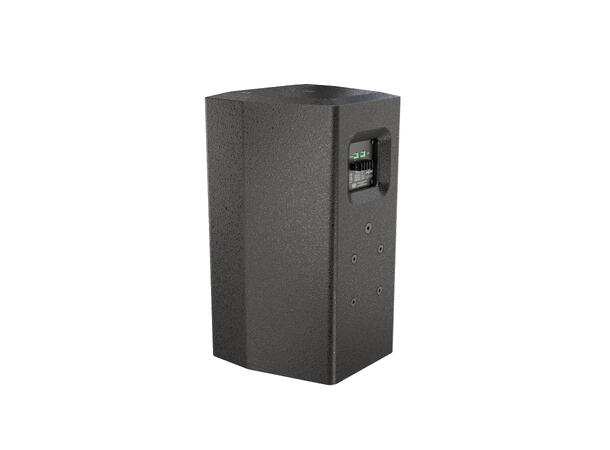

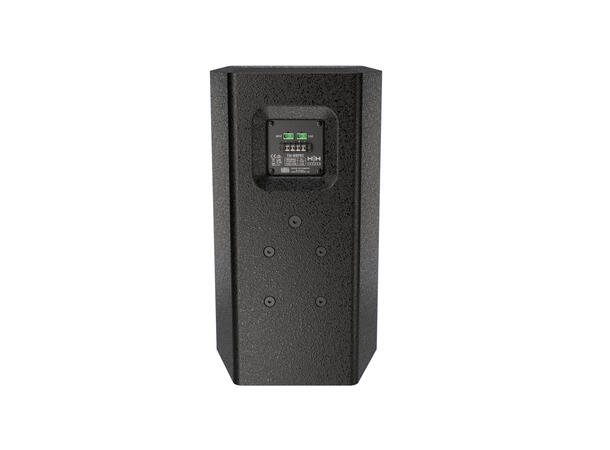

| Input Link Connector |
Euro Block Connector and M4 Barrier
Strip Terminal (7.62mm Pitch) |
| Horiz. Dispersion Angle 1000Hz |
90° |
| Vertical Dispersion Angle 1000Hz |
60° |
| Crossover Frequency |
2.2KHz |
| Cabinet |
Robust all wood construction (15mm
plywood) |
| Finish |
Hard wearing spatter finish (White or
Black option) |

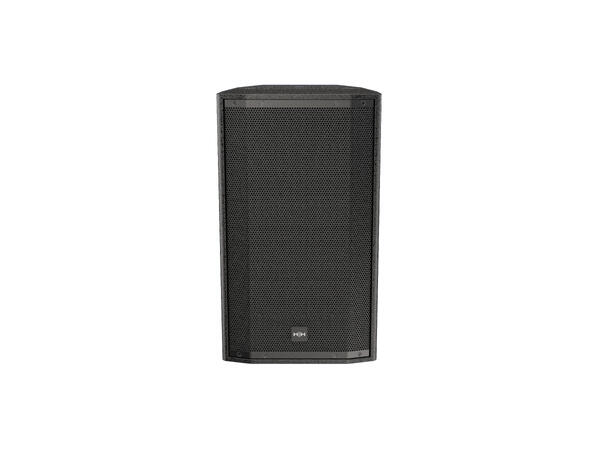

| Grille |
Powdercoated steel with acoustic foam
backing |

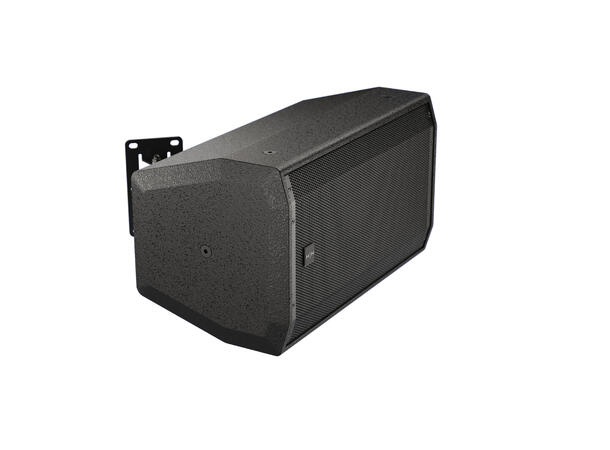

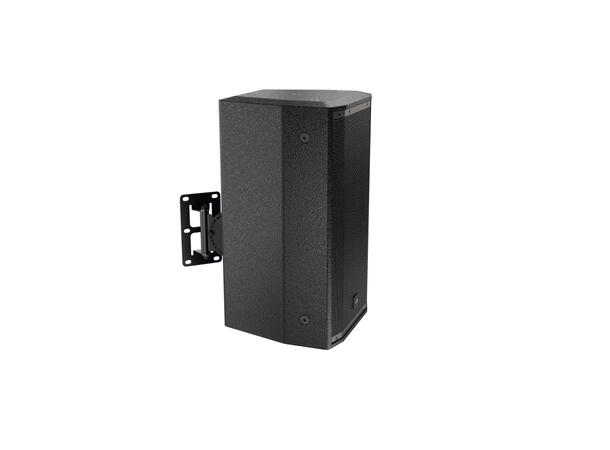

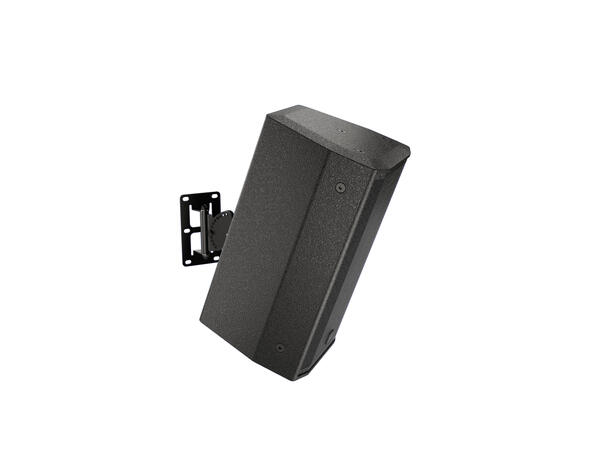

| Mounting Bracket |
4x M8 mounting points for optional
HH-BRK30 |
| Mounting Points |
7x M10 Penn-Elcom fly points (3 on top
face, 2 on side face, 1 on rear, 1 on bottom) |
| Unit Dimensions (Hwd) |
474 x 270 x 257mm, 18.7" x
10.6" x 10.1" |
| Unit Weight |
10Kg, 22 lbs |
| Carton Dimensions (Hwd) |
570 x 370 x 350mm, 22.4" x
14.6" x 13.8" , 0.074 M3 |
| Packed Weight |
12Kg, 26.5 lbs |
