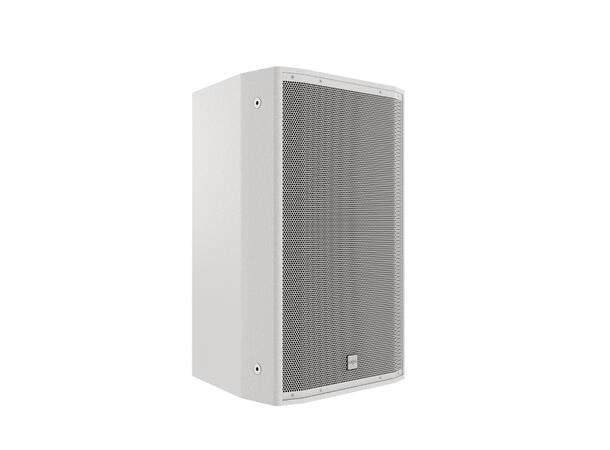

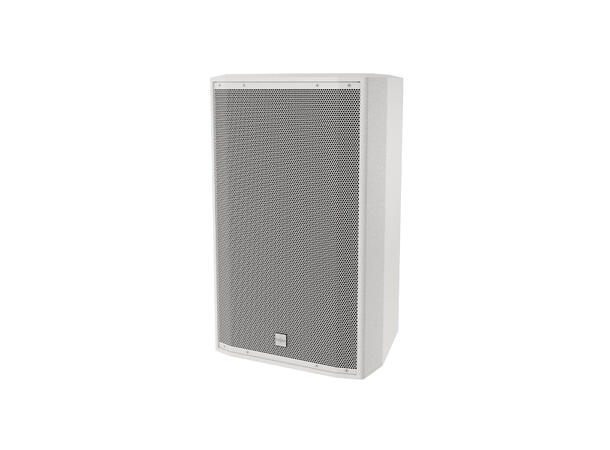

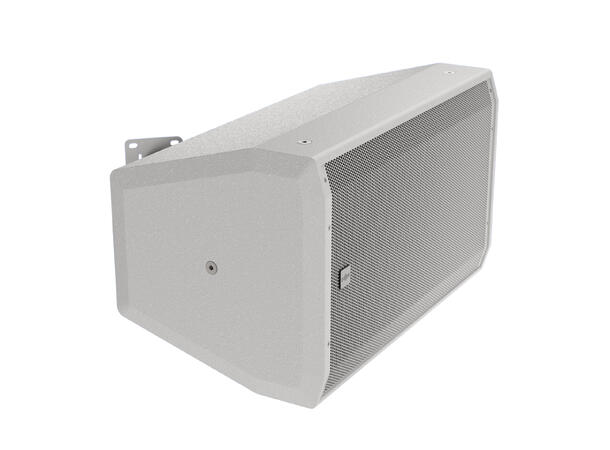

HH Speaker TessenTNi-W12PRO-WH White
12"+1,4" 300W AES Konti 600W 8 Ohm
The HH TNi-W12PRO is a high power, 2-way, full-range loudspeaker system comprised of the 12-inch (2.5-inch voice coil) high power HH low frequency driver and 1.4-inch Celestion CDX1-1445 high-frequency compression driver. The HH/Celestion designed waveguide is rotatable so the loudspeaker can be used in either vertical or horizontal orientation. Flexible input connections via either M4 barrier strip or Euroblock provide versatile connecting options. Mounting options include: 7 x M10 Penn-Elcom fly points, 4 x M8 mounting points for optional TNi-BRK30 mounting bracket. All enclosed in a robust wooden enclosure, powdercoated steel grille with acoustic foam backing in black or white finish.
| System Type |
12-inch 2 way Passive Speaker, Bass Reflex |
| LF Driver |
12-inch HH
Designed High Performance Driver, 2.5-inch Voice Coil |
| HF Driver |
1.4-inch
Celestion CDX1-1445 |
| Nominal System Impedance |
8 ohm |
| Power |
300W AES,
600W Continuous, 1200W Peak |
| Recommended Amplifer |
600-1200W @
8 Ohms |
| Sensitivity (1W/1M) |
98 dB |
| Max SPL |
123 dB, 129
dB (Peak) (1m) |
| Frequency Response (-10) |
36 - 20kHz |
| Frequency Response (-3) |
42 - 18kHz |
| Input Link Connector |
Euro Block
Connector and M4 Barrier Strip Terminal (7.62mm Pitch) |
| Horiz. Dispersion Angle 1000Hz |
90° |
| Vertical Dispersion Angle 1000Hz |
60° |
| Crossover Frequency |
2.2KHz |
| Main Construction Material |
Robust all
wood construction (15mm plywood) |
| Finish |
Hard
wearing spatter finish (White or Black option) |
| Grille |
Powdercoated
steel with acoustic foam backing |

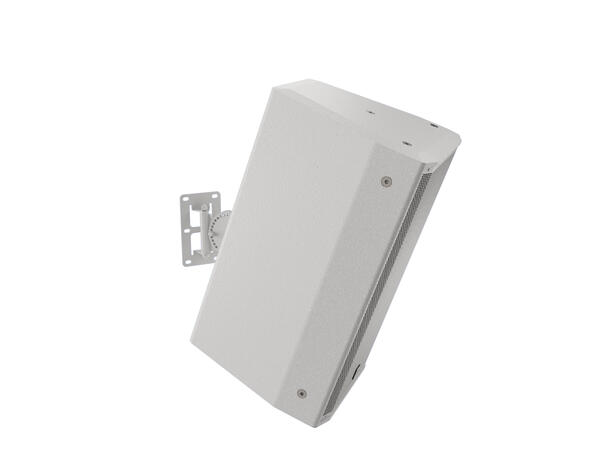

| Mounting Bracket |
4 x M8
mounting points for optional HH-BRK30 |
| Mounting Points |
7 x M10
Penn-Elcom fly points (3 on top face, 2 on side face, 1 on rear, 1 on bottom) |
| Unit Dimensions (Hwd) |
575 x 345 x
337mm, 22.6" x 13.6" x 13.3" |
| Unit Weight |
16Kg, 35.3
lbs |
| Carton Dimensions (Hwd) |
670 x 440 x
430mm, 26.4" x 17.3" x 16.9" , 0.127 M3 |
| Packed Weight |
18Kg, 39.7
lbs |
