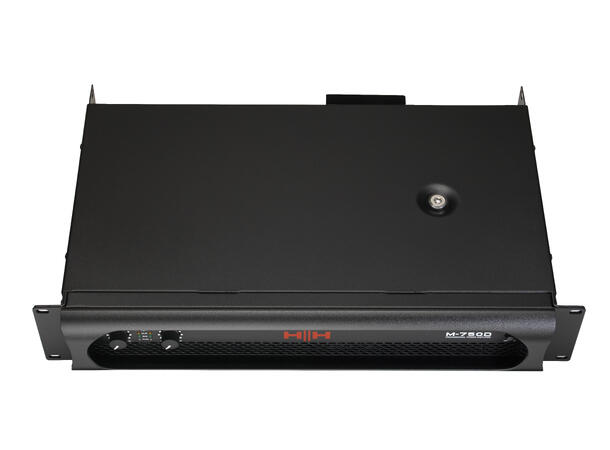

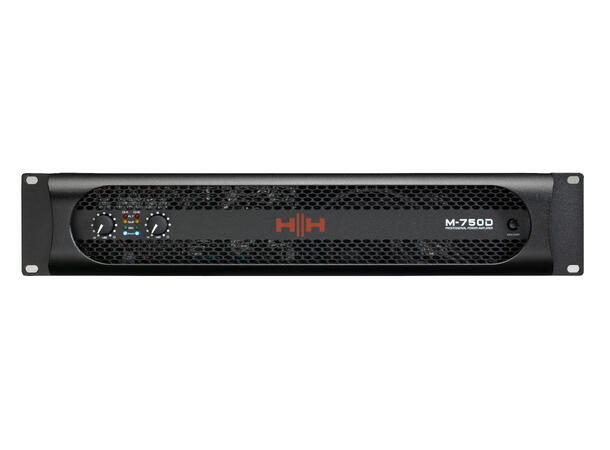

HH Amplifier M-750D - Stereo
2x 750W 4 OHMS | 2x 500 8 OHMS
Description
HH M-Series power amplifiers are high power, 2U rack amplifers designed to provide maximum performance for demanding applications . Three models are available all featuring heavy duty low noise toroidal power supplies and rugged construction. Suitable for anywhere you need high fidelity, high power amplification
Featuring high quality balanced XLR inputs, user selectable input sensitivity , SpeakON(®) Connectors, binding post outputs, status indicators, Twin volume controls and comprehensive protection circuits.
HH has over five decades of experience designing quality power amplifiers, and indeed was one of the pioneers in this area.
| Amplifier Type |
Class H High Performance Professional linear
design |
| Controls |
Volume
Controls (per channel), Power switch, Input Sensitivity Switch,
Bridge/Routing Mode Switch |
| Dimensions |
88 x 482 x
239mm, 3.5 x 19 x 9.4" |
| Features |
Soft start,
comprehensive protection |
| Inputs |
2x Balanced
XLRs |
| Outputs |
2x locking
SpeakON® connectors, 4x 4mm binding posts (with safety cover), 2x Balanced
XLR link outs |
| Output Power : 4 Ohm Stereo |
2x750W |
| Output Power : 8 Ohm Stereo |
2x500W |
| Output Power : 8 Ohm Bridge |
1500W |
| System Type |
2U
Professional Power Amplifier |
| Weight |
12.5Kg/pc,
27.6 lbs/pc |
| Cooling |
Forced air,
variable speed fan, air flow front to back |
| Damping Factor |
>200 |
| Input Sensitivity |
0.775V/1.4V |
| Packed Weight |
14.8Kg/pc,
32.6 lbs/pc |
| Protection |
Soft start,
VHF, RF, short circuit, over load, clip limit, over heat |
| S/N |
=100dB |
| Voltage Gain (8O) |
36dB |
| Input Impedance (Bal/Unbal) |
20KO/10KO |
| Frequency Response |
20Hz -
20KHz (+0, -1dB) |
| Slew Rate |
=20V/µS |
| THD+N |
=0.5%
20Hz-20kHz |
| Power Connector |
Removeable
IEC Power Cord C14 |
| Carton Dimensions (Hwd) |
160 x 580 x
540mm, 6.3 x 22.8 x 21.3" |
