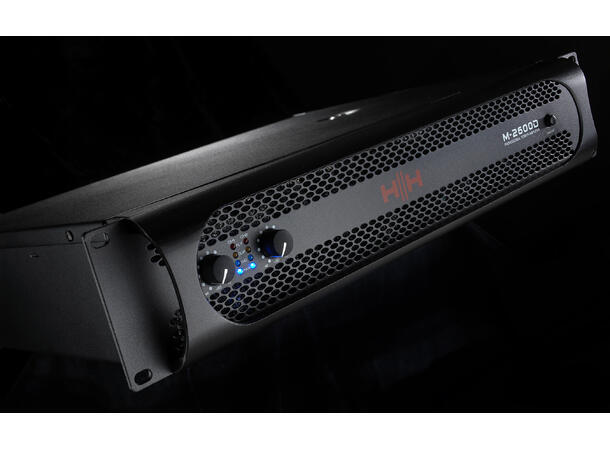

HH Amplifier M-2600D - Stereo
2x 2600W 4 OHMS | 2x 1500W 8 OHM
Description
HH M-Series power amplifiers are high power, 2U rack amplifers designed to provide maximum performance for demanding applications . Three models are available all featuring heavy duty low noise toroidal power supplies and rugged construction. Suitable for anywhere you need high fidelity, high power amplification
Featuring high quality balanced XLR inputs, user selectable input sensitivity , SpeakON(®) Connectors, binding post outputs, status indicators, Twin volume controls and comprehensive protection circuits.
HH has over five decades of experience designing quality power amplifiers, and indeed was one of the pioneers in this area.
| Amplifier
Type |
Class H High
Performance Professional linear design |
| Controls |
Volume
Controls (per channel), Power switch, Input Sensitivity Switch,
Bridge/Routing Mode Switch |
| Cooling |
Forced
air, variable speed fan, air flow front to back |
| Damping Factor |
>200 |
| Dimensions |
88
x 482 x 297mm, 3.5 x 19 x 11.7" |
| Features |
Soft
start, comprehensive protection |
| Input Impedance (Bal/Unbal) |
20KO/10KO |
| Input Sensitivity |
0.775V/1.4V |
| Inputs |
2x
Balanced XLRs |
| Output Power : 4 Ohm Stereo |
2x2600W |
| Output Power : 8 Ohm Stereo |
2x1500W |
| Output Power : 8 Ohm Bridge |
5150W |
| Outputs |
2x
locking SpeakON® connectors, 4x 4mm binding posts (with safety cover), 2x
Balanced XLR link outs |
| Packed Weight |
26.6Kg/pc,
58.6 lbs/pc |
| Power Connector |
Removeable
IEC Power Cord C14 |
| Protection |
Soft
start, VHF, RF, short circuit, over load, clip limit, over heat |
| S/N |
=100dB |
| Slew Rate |
=20V/µS |
| System Type |
2U
Professional Power Amplifier |
| THD+N |
=0.5%
20Hz-20kHz |
| Voltage Gain (8O) |
37dB |
| Weight |
24.2Kg/pc,
53.4 lbs/pc |
| Frequency Response |
20Hz
- 20KHz (+0, -1dB) |
| Carton Dimensions (Hwd) |
160
x 580 x 540mm, 6.3 x 22.8 x 21.3" |
