ARX ISO De Balancer 2 x XLR in | RCA out

ARX ISO De Balancer

2 x XLR in | RCA out

Varunummer: 41277
Alt. varunr: AB-10-AR
BeskrivningExtern Info
Beskrivning

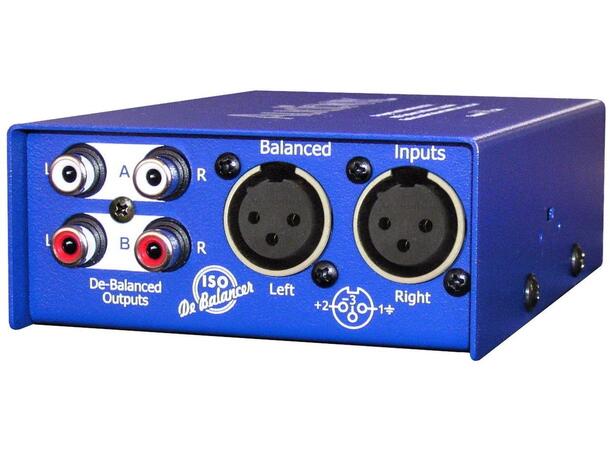

Audibox ISO De-Balancer

2 x XLR in | RCA out


A Unique de-balancing box, the De-Balancer will convert stereo Balanced Low Impedance signals to Unbalanced Low Impedance signals, to allow leads to run balanced from A to B and then be de-balanced for connecting to a high impedance/unbalanced input at the other end.


This enables you to keep a balanced line all the way up to the input of an unbalanced unit, reducing hum, noise and interference pickup along the way. Transformer Ground isolation provides low-noise operation suitable for any application.



The heavy duty all-steel chassis is finished in attractive matt textured powdercoat, with hardwearing epoxy screen printing and slip resistant rubber pads. The De-Balancer is a totally passive device with no power requirements, making it a truly universal problem solver.


Security features include Kensington®-type computer lock slot and optional bracket kit for under-table mounting.



Available in Dual Channel format only



  • Input Impedance 10K Ohms Balanced
  • Output Impedance 10K Ohms Unbalanced
  • Input Level (max) +12dB
  • Frequency Response 20Hz - 20 KHz ± 0.5dB
  • THD at Max Output 0.2% 30 Hz - 20KHz
  • Insertion Loss 0.75dB @ 1 KHz (600 Ohm source)
  • Input Connector
    3 pin female XLR, wired Pin 1 Ground, Pin 2 + Hot, Pin 3 - Cold. Chassis Ground connected to XLR Pin 1
  • Output Connectors Dual stereo RCA connectors



Construction

All-steel powdercoated chassis, fibreglass PCB, ultra low noise audio transformer
