Aten US3344I Styrbar USB 3.1 Switch
The US3344I is a 4-port USB 3.2 Gen 1 Industrial Switch that enables four computers to share and use USB 3.2 Gen 1 devices such as keyboard, mouse and other peripheral devices. Users can manually switch the focus to a particular computer using the pushbutton on the switch, or have the focus automatically switched based on detection of connected computers.
It eliminates the cost to implement the complicated redundant systems and equipment for each computer. The US3344I chassis and rack mountable design is suitable for any industrial environment. For extra convenience, it features an external remote control port that can simplify cabling layout. The US3344I allows for a neat and tidy installation – the USB cables are bundled to save the extra cost of purchasing USB cables.
- Enables four computers to share USB peripheral up to four devices
- USB 3.2 Gen 1 compatibility with maximum data transfer rates up to 5 Gbps
- Multiplatform support - Windows, Mac and Linux

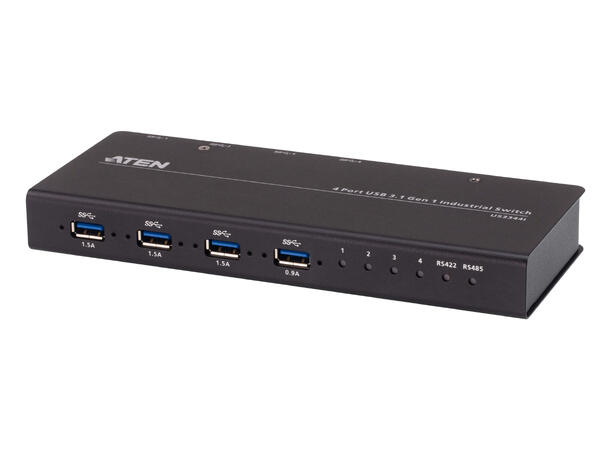

- Displays port focus via LED indicators
- Metal mechanical cassis with wall mountable design
- Supports aftermarket USB M2 screw locking cable

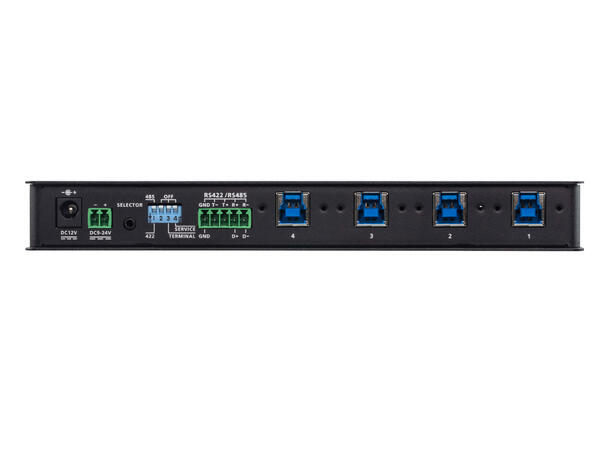

- Supports port selection via remote controller or RS-422 / RS-485 link through 5-pin terminal block
- Supports hot plugging
- Supports DC 9 - 24V power input through terminal block*
- Supports USB BC 1.2 and over current protection
- Power on detection
– The computer focus automatically switches to a newly plugged-in or powered-on computer
– The computer focus automatically switches to port 1 when the focused computer is unplugged or powered-off - Firmware upgradable
*Supports either of the following, power supplies:
1. DC terminal block
2. DC power jack (available for purchase separately from your closest ATEN dealer.Part No.: 0AD8-8012-33MG)
Package Contents
- 1x 4x4 USB 3.2 Gen 1 Industrial Hub Switch
- 2x LIN6-11C1-E11G USB 3.2 Gen 1 Type-B to Type-A Cable 1.2M
- 2x LIN6-11C1-E12G USB 3.2 Gen 1 Type-B to Type-A Cable 1.8M
- 1x Remote Port Selector
- 1x Mounting Kit
- 1x Terminal Block Adapter Set (an RS-422/RS-485 and a DC terminal block adapter)
- 1x User Instructions
