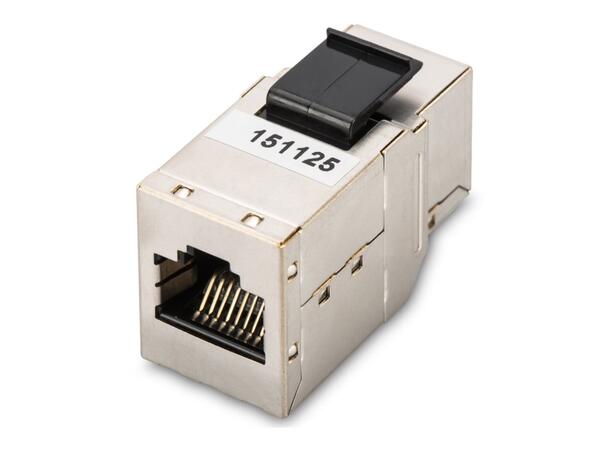

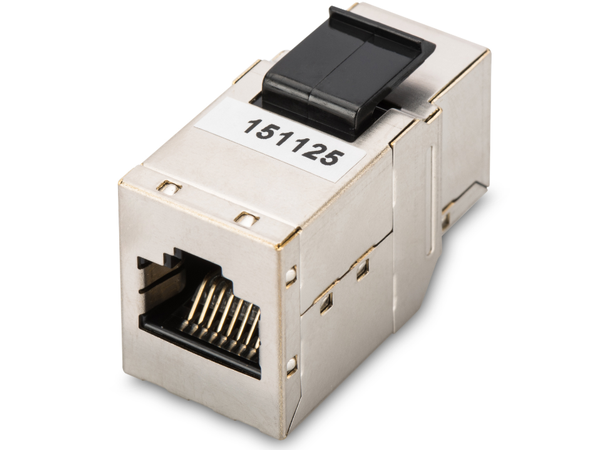

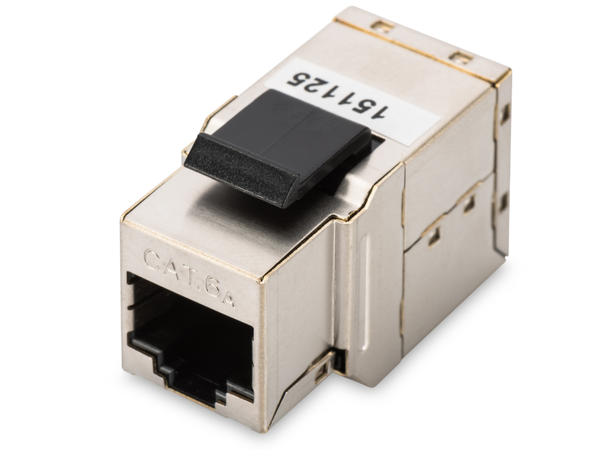

LinkIT Keystone RJ45-skjøt Cat.6A STP For keystone panel | hun/hun LinkIT Keystone RJ45-skjøt Cat.6A STP For keystone panel | hun/hun

LinkIT Keystone RJ45-skjøt Cat.6A STP

For keystone panel | hun/hun

Varenr: 36652
Alt. varenr: LI-KSSPT-6A
BeskrivelseTeknisk infoEkstern Info
Beskrivelse
Cat.6a RJ45 8/8 jacks 1:1 shielded
Snap-in mounting (Keystone)

Description

CAT 6A Class EA Modular Coupler, shielded

CAT 6A modular coupler, shielded RJ45 to RJ45, snap-in panel mount

The modular couplers are shielded and provide best performance and link quality for your network. They are equipped with 2 RJ45 sockets with the assignment 1:1 and are therefore suitable for mounting in Patch Panels.

Technical details

  • Transmission properties: Category 6A, Class EA
  • Area of application: Up to 500 MHz, 10GBase-T
  • Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
  • General properties:
  • Suitable for 483 mm (19") cabinet mounting
  • 2x RJ45 Female, 8P8C
  • 360° shield coverage
  • Connection 1:1
  • Technical properties:
  • Housing material: Zinc die-cast, nickel-plated
  • RJ45 female material: ABS UL 94V-0
  • RJ45 female contact: Tinned phosphor bronze, 0.5 µ gold-plated contact
  • RJ45 shielding: Tinned bronze
  • Conductor plate: FR4, UL 94V-0
  • Physical properties:
  • Insertion force: 30N max. (IEC 60603-7-5)
  • Retention strength: 7.7 kg between jack and plug
  • Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
  • Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
  • Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
  • IDC wire size: 22 – 26 AWG solid and stranded conductor
  • Insulation resistance: > 500 MOhm
  • Contact resistance: < 20 MilliOhm
  • Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)

Teknisk info

Produktinformasjon

EL-nummer 6903290
Kabelkategori Cat.6a
