HH Høyttaler Tessen TNi-W4-BK Svart

4" + 1" 30W@100V 45W@8 Ohm Phoenix

Varenr: 131757
Alt. varenr: TNi-W4-BK
BeskrivelseAlternativerEkstern Info
Beskrivelse

HH Speaker Tessen TNi-W4 - Black

4" + 1" 30W@100V 45W@8 Ohm Phoenix



The TNi-W4 delivers professional audio output and versatility within a compact, wall mount speaker enclosure. The TNi-W4 - 4 inch passive enclosure - features 4 power tappings ranging from 1.5W - 30W and can be connected to 70V/100V or 8 ohm low impedance lines. Equipped with euroblock and M4 screw terminals, The TNi-W4 offers a wide array of connections within a single unit. With solid steel, multi-angle bracket included, The TNi-W4 comes with all essential installation components.

Specifications
Model TNi-W4
System type Passive, 2-way, Bass Reflex
Woofer Size 4"
Tweeter Size 1" Dome Tweeter
100V Power Options 30W, 15W, 6W, 3W
Frequency Response (-10) 80Hz > 20KHz
Frequency Response (-3) 125Hz - 18KHz
LF Driver 4 Inch Paper
HF Driver 1 Inch Dome Tweeter
Low Nominal System Impedance 8 Ohm
Power 45W AES, 180W Peak
Max SPL (1M) (Peak) 111 dB SPL
Sensitivity (1W/1M) 88 DB SPL
Recommended Amplifer 80-160W @ 8 Ohms
Horiz. Dispersion Angle 1000Hz 90°
Vertical Dispersion Angle 1000Hz 80°

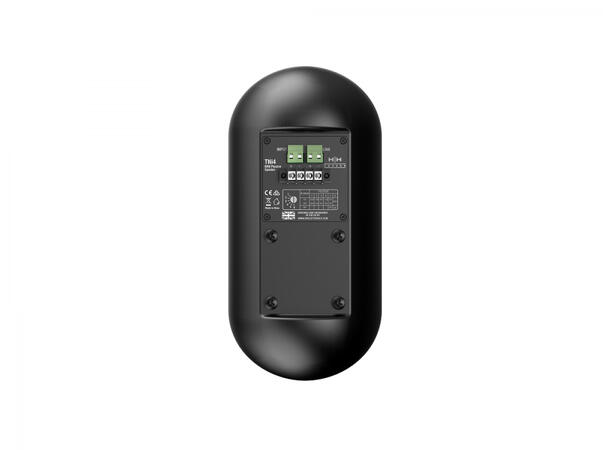

Input Connector
EUROBLOCK AND M4 TERMINALS Link Connector
EUROBLOCK AND M4 TERMINALS Mounting Bracket
ADJUSTABLE STEEL BRACKET INCLUDED
Unit Dimensions (Hwd) 295 X 145 X 222MM, 11.6" X 5.7" X 8.7"
Unit Weight 2.8KG, 6.2 LBS
Main Construction Material ABS PLASTIC
Grille BLACK, CIRCULAR STEEL MESH
Finish BLACK
