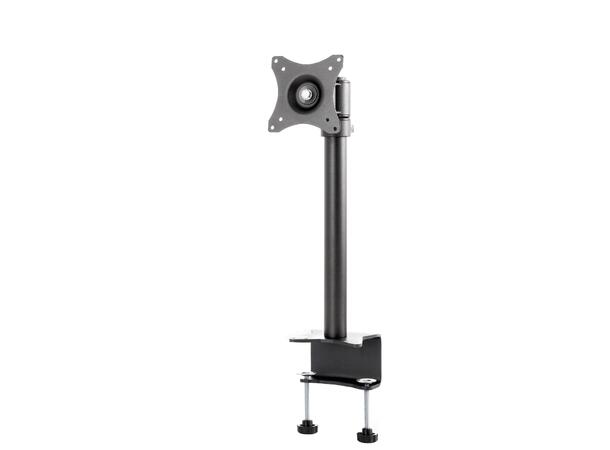

EDBAK SV01 Desktop Mount 10-29"
100x100 | 170 x 120 x 500 mm
SV01 is a universal desk mount for 10"-29" screens, designed for desk work ergonomics in both office and home spaces. Easy tilting of the screen by -50° to +50° and the option of 360° screen rotation allow the user to obtain optimum adjustment of the screen and the maximum comfort. Two types of fastenings and the option of screen height adjustment ensure comfort and optimise the workplace. Cable management is integrated in the SV01 mount, which ensures smart installation on the desk.
- 2 types of fastenings included
- Screen height adjustment
- Option of screen tilting by -50° to +50°
- 360° screen rotation
- Tilting and rotation adjustment
- 2 types of desk fastenings
- Universal VESA system
- Cable management
Index |
SV01 |
Category |
Desktop Monitor Mounts |
Product
group |
Display Mounts |
Color |
Black |
Warranty |
Limited 5-year’s |
Number
of screens |
1 |
Minimum
screen size |
10" |
Maximum
screen size |
29" |
Forward
tilting |
-50° |
Forward
tilting |
+50° |
Arm
rotation |
360° |
Left-right
rotation |
360° |
Maximum
load |
10 kg |
VESA
Mounting Compatibility |
75×75 up to 100×100 |
Product
dimensions |
W: 170 mm D: 120 mm H: 500 mm
(W: 4,72" D: 6,69" H: 19,69") |
Product
weight |
2,8 kg (6 lb) |
Max.
distance from mounting surface |
376 mm (14,80") |
Min.
distance from mounting surface |
100 mm (3,94") |
Max.
mounting pattern |
100 mm x 100 mm |
Min.
mounting pattern |
75 mm x 75 mm |
SAP
Index |
WUBI-SV01c-B |
Color |
Black |
Package
Dimensions |
535 x 175 x 125 mm (21,06"
x 6,89" x 4,92") |
